Rolled Steel Frame Motor | モーター

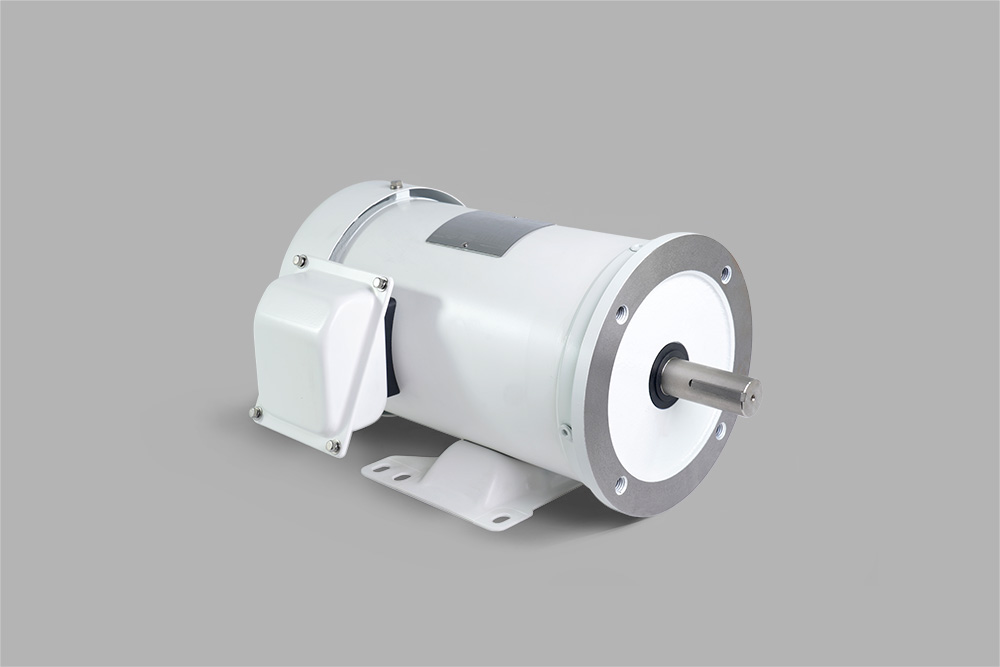

Wash-Down
Duty Motor

FRAME is SMOOTH BODY using STEEL steel sheet, BRACKET is casted, the shaft is STAINLESS STEEL, and the surface is painted with

two parts EPOXY paint approved by the U.S. FDA. The inner gap is also thoroughly waterproof and can be used in humid places.

Specifications		Key Features
Horsepower	1/3 ~ 2HP	- Apply TENV and TEFC for cooling - NEMA Design : B - CSA, CE, UL, Acquisition of Specifications - US DOE Certifies CSA Premium Motor Vehicles - Insulation - Class F, H - All internal gaps are completely blocked by RTV Sealant water resistance - Install stainless steel drain plugs at four C-face bracket locations - Inverter operable - Enclosure IP65
Power	230V/460V/575V 220V/380V 200V/400V
Poles	2P, 4P, 6P, 8P
Core	￠138, ￠160
Key Features
- Apply TENV and TEFC for cooling - NEMA Design : B - CSA, CE, UL, Acquisition of Specifications - US DOE Certifies CSA Premium Motor Vehicles - Insulation - Class F, H - All internal gaps are completely blocked by RTV Sealant water resistance - Install stainless steel drain plugs at four C-face bracket locations - Inverter operable - Enclosure IP65

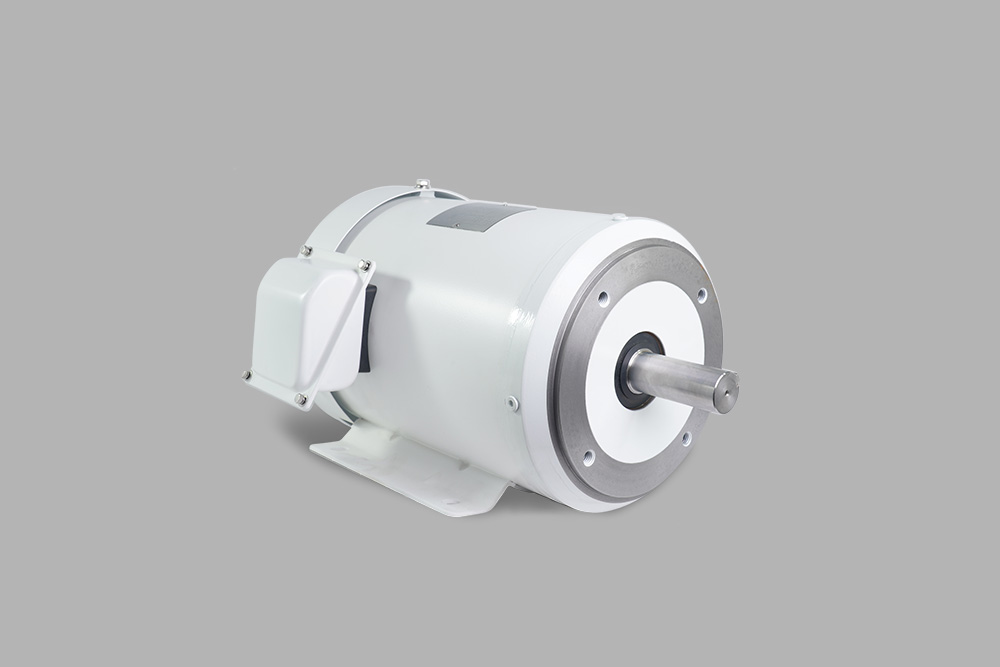

Specifications		Key Features
Horsepower	3 ~ 5HP	- Apply TENV and TEFC for cooling - NEMA Design : B - CSA, CE, UL, Acquisition of Specifications - US DOE Certifies CSA Premium Motor Vehicles - Insulation - Class F, H - All internal gaps are completely blocked by RTV Sealant water resistance - Install stainless steel drain plugs at four C-face bracket locations - Inverter operable - Enclosure IP65
Power	230V/460V/575V 220V/380V 200V/400V
Poles	2P, 4P, 6P
Core	￠190
Key Features
- Apply TENV and TEFC for cooling - NEMA Design : B - CSA, CE, UL, Acquisition of Specifications - US DOE Certifies CSA Premium Motor Vehicles - Insulation - Class F, H - All internal gaps are completely blocked by RTV Sealant water resistance - Install stainless steel drain plugs at four C-face bracket locations - Inverter operable - Enclosure IP65

Specifications		Key Features
Horsepower	7.5 ~ 10HP	- Apply TENV and TEFC for cooling - NEMA Design : B - CSA, CE, UL, Acquisition of Specifications - US DOE Certifies CSA Premium Motor Vehicles - Insulation - Class F, H - All internal gaps are completely blocked by RTV Sealant water resistance - Install stainless steel drain plugs at four C-face bracket locations - Inverter operable - Enclosure IP65
Power	230V/460V/575V 220V/380V 200V/400V
Poles	2P, 4P
Core	￠250
Key Features
- Apply TENV and TEFC for cooling - NEMA Design : B - CSA, CE, UL, Acquisition of Specifications - US DOE Certifies CSA Premium Motor Vehicles - Insulation - Class F, H - All internal gaps are completely blocked by RTV Sealant water resistance - Install stainless steel drain plugs at four C-face bracket locations - Inverter operable - Enclosure IP65
